1. Introduction to FM-200 Fire Suppression Systems: Why They’re Essential in Pakistan

Definition and basic function (HFC-227ea clean agent for rapid fire suppression)

FM-200, also known by its chemical name HFC-227ea, is a clean agent fire suppression system designed for rapid fire control. It is widely used in modern industries because it extinguishes fire quickly without leaving behind water, foam, or powder residue. This makes it especially valuable for protecting sensitive environments where equipment and data cannot afford to be damaged by traditional firefighting methods.

The basic function of the HFC-227ea clean agent is to stop fire through heat absorption and chemical interference with the combustion process. When the system activates, the agent is discharged within seconds, lowering the heat energy and breaking the fire chain reaction. Unlike water-based systems, HFC-227ea does not harm electronics, documents, or delicate machinery, making it ideal for server rooms, data centers, hospitals, and control rooms.

Another important aspect of FM-200 fire suppression is its safety for occupied spaces. Since HFC-227ea is non-conductive, non-corrosive, and leaves no residue, it allows people to evacuate safely while ensuring the fire is suppressed almost instantly. Its efficiency and clean discharge are the main reasons why FM-200 has become one of the most trusted choices for rapid fire suppression in Pakistan and worldwide.

Importance in protecting high-value assets amid rising fire incidents in Pakistan

In Pakistan, the number of fire incidents in commercial and industrial sectors has been increasing, creating serious risks for businesses and institutions. Facilities such as data centers, telecom hubs, hospitals, banks, and corporate offices rely heavily on sensitive equipment and digital infrastructure. A small fire can cause damage worth millions of rupees, not just in property loss but also in downtime and data destruction. This is where the FM-200 fire suppression system plays an important role in protecting high-value assets.

Unlike traditional water sprinklers that can damage electronics, FM-200 uses a clean agent that extinguishes fire without leaving residue. This makes it particularly valuable for environments where uninterrupted operations and asset protection are critical. For example, a fire in a server room or hospital ICU cannot be fought with water, as it would destroy the very systems that must be preserved. FM-200 ensures rapid fire control while keeping equipment safe and operational.

As fire safety awareness grows in Pakistan, many organizations are now investing in FM-200 systems as part of their risk management strategy. The importance of this technology lies in its ability to provide instant protection, safeguard business continuity, and reduce the financial and reputational losses that often follow fire disasters. In today’s scenario, adopting FM-200 is not just a precaution—it is a necessity for protecting high-value assets amid rising fire incidents.

Overview of benefits (no residue, safe for occupied spaces, ozone-friendly)

One of the main reasons FM-200 fire suppression systems are widely adopted is the unique set of benefits they offer compared to traditional firefighting methods. The clean agent used in this system leaves no residue after discharge. This means there is no cleanup required, and sensitive environments such as server rooms, medical facilities, or data centers remain safe from water or chemical damage that other systems might cause.

Another major advantage is that FM-200 is safe for occupied spaces. In many workplaces, evacuation may take a few moments, and during that time the system can discharge without putting lives at risk. Employees and visitors can exit safely while the fire is being suppressed almost instantly, making it suitable for offices, hospitals, control rooms, and other occupied areas.

Environmental safety is also an important benefit. FM-200 is an ozone-friendly agent, meaning it does not harm the ozone layer when released. This compliance with international standards allows businesses in Pakistan to adopt modern fire protection solutions that are both effective and environmentally responsible. With its combination of no residue, human safety, and ozone-friendly design, FM-200 continues to be one of the most reliable fire suppression choices worldwide.

2. How Does an FM-200 Fire Suppression System Work? Step-by-Step Breakdown

Mechanism of action (disrupts fire triangle via heat absorption and free radical interruption)

The FM-200 fire suppression system works by targeting the very core of how fire sustains itself. Fire needs three elements to continue burning: heat, fuel, and oxygen—commonly called the fire triangle. FM-200 disrupts this balance through a rapid two-fold mechanism that makes it highly effective in controlling flames.

First, the HFC-227ea clean agent absorbs heat energy from the fire. When discharged, the gas quickly reduces the temperature in the protected area, weakening the heat element of the triangle. At the same time, FM-200 interrupts the chemical reaction taking place during combustion. By interfering with the free radicals that allow the fire to spread, the system breaks the chain reaction and brings the fire under control in seconds.

This dual action—heat absorption and free radical interruption—ensures that FM-200 suppresses fire without using water or foam. The process is fast, clean, and safe for both equipment and people, which is why it is widely installed in critical areas like server rooms, control panels, and telecom facilities across Pakistan.

Discharge process (10 seconds or less, pressurized cylinders with nitrogen)

The discharge process of an FM-200 fire suppression system is designed to act almost instantly, which is why it is trusted for protecting critical areas. Once a fire is detected by the detection system, the cylinders containing the HFC-227ea clean agent are activated. These cylinders are pressurized with nitrogen, allowing the agent to flow quickly through a network of pipes and discharge nozzles.

The entire release takes place in 10 seconds or less, filling the protected area with the FM-200 clean agent. This rapid action ensures that the fire does not have time to spread or cause further damage. Because of its speed, FM-200 is highly effective in safeguarding environments where even a few seconds of fire can result in major losses, such as data centers, medical equipment rooms, or power facilities.

The clean agent is discharged as a gas, which evenly distributes across the space without leaving residue or moisture. This makes the system suitable for locations that house electronics, documents, or valuable machinery, where traditional firefighting methods would cause additional harm. The combination of nitrogen pressurization and rapid release gives FM-200 its reputation as one of the fastest and most reliable fire suppression technologies available.

Activation methods (automatic detection or manual release)

An FM-200 fire suppression system is designed with flexible activation methods to ensure fire can be controlled immediately, no matter the situation. The most common method is automatic detection. In this setup, smoke or heat detectors are connected to the fire control panel. As soon as these detectors sense a fire, the panel triggers the cylinders to discharge FM-200 gas into the protected area. This automatic activation is highly effective in places like data centers or server rooms, where fires can spread quickly and staff may not be present to respond instantly.

Alongside automatic detection, FM-200 systems are also equipped with manual release options. Manual stations are installed at accessible points, allowing personnel to activate the system if they notice a fire before the detectors do. This dual approach adds a strong layer of reliability, ensuring that fire suppression can begin either through fast sensor-based detection or immediate human action.

By offering both automatic and manual activation methods, FM-200 systems provide maximum safety and flexibility. This combination ensures rapid fire response, protecting valuable equipment and lives even under unexpected conditions.

Safety considerations during operation (non-toxic, electrically non-conductive)

One of the key advantages of the FM-200 fire suppression system is its safety profile, which makes it suitable for a wide range of environments. The clean agent HFC-227ea is non-toxic when used within design concentrations, allowing people to safely evacuate during discharge. This feature is especially important in workplaces, hospitals, and control rooms where occupied spaces require a fire protection system that does not put lives at risk.

FM-200 is also electrically non-conductive, meaning it can be discharged directly onto live electrical equipment without causing short circuits or further damage. This makes it an ideal choice for protecting sensitive electronics such as servers, medical machines, and telecommunication systems. Unlike water-based suppression, which can destroy valuable equipment, FM-200 ensures safety for both people and assets.

During operation, proper system design and regular maintenance are critical to ensure that concentrations remain within safe limits. With correct installation, FM-200 offers reliable fire suppression while maintaining a high level of safety for occupants and the protected environment.

3. Types and Components of FM-200 Systems

Key components (cylinders, nozzles, control panels, detection systems)

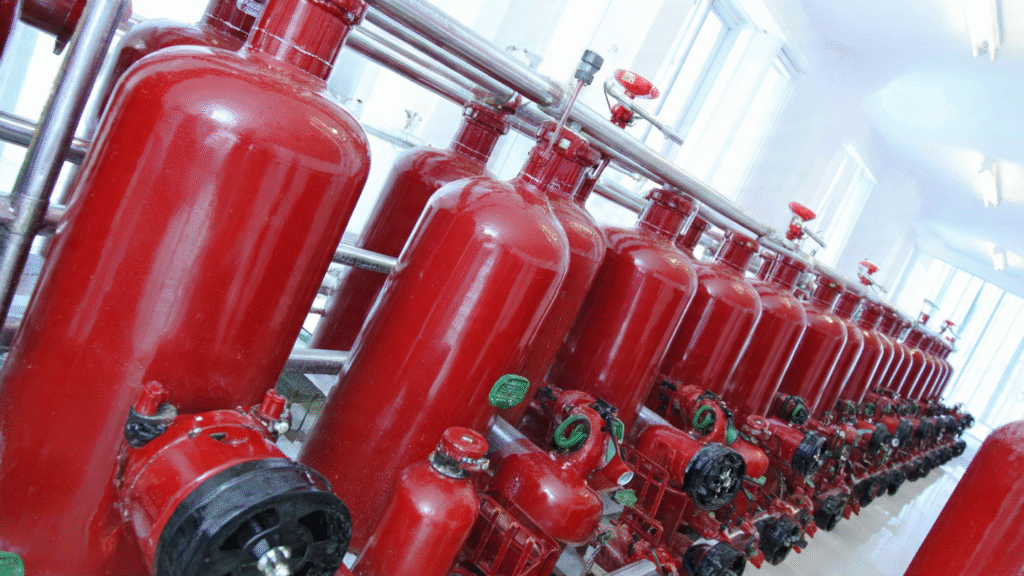

An FM-200 fire suppression system is made up of several key components that work together to provide reliable and instant fire protection. The most important part is the cylinders, which store the HFC-227ea clean agent. These cylinders are kept under pressure with nitrogen, ensuring that the agent can be released quickly when needed.

From the cylinders, the gas travels through a network of pipes and is discharged into the protected area through specially designed nozzles. These nozzles are engineered to distribute FM-200 evenly, so that the fire is suppressed in every corner of the room within seconds.

The control panel is another critical component. It acts as the brain of the system, monitoring signals from smoke or heat detectors and activating the cylinders when a fire is detected. The detection system itself is responsible for identifying early signs of fire, such as smoke or rising temperature, and alerting the control panel immediately.

Together, these components—cylinders, nozzles, control panels, and detection systems—create a complete fire suppression solution that ensures fast and efficient protection for valuable assets. Each part has a specific role, and when properly maintained, they guarantee the effectiveness of FM-200 in high-risk environments.

System variations (pre-engineered vs. engineered, high-pressure 25-bar systems)

FM-200 fire suppression systems are available in different variations to meet the unique needs of various facilities. The two main categories are pre-engineered systems and engineered systems. A pre-engineered FM-200 system is designed for smaller, enclosed areas such as server racks, control cabinets, or small equipment rooms. These systems come with fixed configurations, making them quick to install and cost-effective for limited spaces.

On the other hand, engineered FM-200 systems are customized according to the specific requirements of larger or more complex facilities. Engineers design the system based on room size, equipment layout, and fire risk level. This type is commonly used in data centers, hospitals, and industrial plants where precision and wide-area coverage are essential.

Another important variation is the pressure level of the system. Modern FM-200 systems often operate at high pressure, typically 25-bar, which ensures the gas can be distributed efficiently across large pipe networks and into bigger rooms. This high-pressure capability allows for faster discharge and reliable performance even in facilities with extended piping arrangements.

By offering both pre-engineered and engineered solutions, along with advanced 25-bar high-pressure systems, FM-200 provides flexibility to protect everything from small sensitive enclosures to large-scale mission-critical environments.

Comparison with alternatives (e.g., CO2, Novec 1230)

When choosing a fire suppression system, it is important to compare FM-200 with other widely used alternatives such as CO2 and Novec 1230. Each system has unique strengths and limitations, which determine their suitability for different applications.

FM-200 fire suppression is often preferred in areas where people are present because it is non-toxic within design concentrations and safe for occupied spaces. In contrast, CO2 systems can be dangerous for humans, as high concentrations of carbon dioxide displace oxygen and make the environment unsafe for evacuation. While CO2 is effective for industrial hazards, it is not recommended for offices, server rooms, or healthcare facilities.

Novec 1230 is another clean agent alternative that competes closely with FM-200. Both are electrically non-conductive and leave no residue, making them safe for electronics. However, Novec 1230 is known for its very low global warming potential (GWP), which makes it more environmentally friendly. FM-200, while still ozone-friendly, has a higher GWP in comparison.

Cost and availability also influence decisions in Pakistan. FM-200 systems are widely available and supported by many local suppliers, often making them more practical for immediate use. Novec 1230 may carry a higher price tag, and CO2 is generally cheaper but not suitable for human-occupied areas.

Overall, FM-200 stands out as a balanced choice by combining rapid suppression, occupant safety, and proven reliability, especially for critical environments where both people and assets need protection.

Customization for different hazard levels (Class A, B, C fires)

The FM-200 fire suppression system is designed with flexibility so it can handle different classes of fire hazards commonly found in commercial and industrial facilities. This customization makes it a reliable solution for diverse environments where one type of system may not be enough.

For Class A fires, which involve ordinary combustible materials like paper, wood, or fabric, FM-200 suppresses flames by absorbing heat and interrupting the combustion process. This makes it suitable for office spaces, libraries, and archives where traditional extinguishing agents could damage assets.

Class B fires, caused by flammable liquids such as fuels, oils, and chemicals, present a greater challenge because they spread rapidly. FM-200 is effective here as well, as it quickly reduces heat energy and prevents the fire from reigniting. Facilities like chemical storage rooms, laboratories, and power plants often rely on this system for protection.

For Class C fires involving electrical equipment, FM-200 shows its greatest strength. Being electrically non-conductive, it can be discharged directly onto live electrical panels, server racks, and medical machinery without risk of short-circuiting or further damage. This is why it is commonly chosen for data centers, telecom facilities, and hospitals in Pakistan.

By customizing design concentrations and system layouts according to Class A, B, or C hazards, FM-200 ensures tailored fire protection that matches the exact risk level of the environment.

4. FM-200 Standards and Certifications for Reliable Protection

Key international standards (NFPA 2001, UL Listed, FM Approved)

FM-200 fire suppression systems are trusted worldwide because they comply with recognized international standards that ensure safety, reliability, and performance. The most important of these is NFPA 2001, which is the global standard for clean agent fire extinguishing systems. It provides detailed guidelines on system design, installation, concentration levels, and safety requirements. Compliance with NFPA 2001 guarantees that the FM-200 system performs effectively in protecting both assets and human life.

Another key certification is UL Listed (Underwriters Laboratories). A UL Listed FM-200 component means it has been tested under strict laboratory conditions for quality, durability, and safety. This gives end users confidence that the equipment meets international benchmarks for performance.

In addition to UL, many FM-200 systems are also FM Approved (Factory Mutual). FM Approval signifies that the system and its components have been independently evaluated and proven to work under real-world fire conditions. This approval is particularly important for high-value facilities, where reliability cannot be compromised.

By adhering to NFPA 2001, UL Listed, and FM Approved standards, FM-200 systems in Pakistan and worldwide provide assurance that they meet the highest levels of safety and effectiveness. These standards are one of the main reasons why organizations continue to choose FM-200 as a trusted fire protection solution.

Compliance in Pakistan (Building Code of Pakistan 2021, alignment with NFPA/BSI)

In Pakistan, the installation and use of FM-200 fire suppression systems must follow both local and international regulations to ensure safety and reliability. The Building Code of Pakistan 2021 specifically highlights the need for advanced fire protection measures in commercial, industrial, and high-rise buildings. This code encourages the use of clean agent systems like FM-200 in sensitive areas where water-based suppression is not suitable.

Alongside national requirements, FM-200 systems in Pakistan are also aligned with NFPA (National Fire Protection Association) standards, particularly NFPA 2001, which governs clean agent fire extinguishing systems. By adhering to NFPA guidelines, designers and installers ensure that the concentration levels, discharge times, and safety measures meet international benchmarks.

Additionally, compliance with BSI (British Standards Institution) standards provides further assurance of system quality and operational efficiency. Many Pakistani fire safety companies use NFPA and BSI standards together with local codes to design FM-200 systems that meet global expectations while satisfying national building regulations.

This alignment between the Building Code of Pakistan 2021 and recognized international standards like NFPA and BSI ensures that FM-200 systems are not only effective but also legally and technically compliant. It gives organizations confidence that their fire suppression solutions meet the highest levels of safety, both locally and globally.

Certifications to look for (CE marking, low GWP for environmental compliance)

When selecting an FM-200 fire suppression system, certifications play a critical role in confirming its safety, performance, and environmental compliance. One of the key marks to look for is the CE marking, which indicates that the equipment meets European safety, health, and environmental protection standards. CE-certified components give buyers confidence that the system has been manufactured and tested under strict international regulations.

Another important factor is environmental compliance. FM-200 systems should be evaluated based on their Global Warming Potential (GWP). While HFC-227ea is already considered ozone-friendly, choosing systems that are designed and documented with a lower GWP rating ensures alignment with global sustainability goals. This is especially relevant for organizations in Pakistan that want to follow international environmental guidelines and demonstrate corporate responsibility.

In addition to CE marking and low GWP certification, many reputable systems also carry approvals such as UL Listed and FM Approved, further confirming their reliability. By checking these certifications, businesses can make sure that their FM-200 systems are not only effective for fire protection but also compliant with safety and environmental standards.

Importance of certified systems for insurance and legal requirements

Certified FM-200 fire suppression systems are not only about safety and performance; they also play a major role in meeting insurance and legal requirements. In Pakistan, many commercial and industrial facilities are required by regulatory bodies and the Building Code of Pakistan 2021 to install fire protection systems that comply with international standards. Using uncertified equipment can lead to penalties, legal complications, or even closure of operations after inspections.

From an insurance perspective, certified FM-200 systems provide strong documentation that a facility has taken proper steps to minimize fire risk. Insurance companies often demand proof of compliance with recognized standards such as UL Listed, FM Approved, NFPA 2001, or CE marking before granting coverage. If a fire occurs and the installed system is uncertified or poorly documented, insurance claims may be reduced or rejected.

Having a certified FM-200 system ensures peace of mind for business owners. It demonstrates due diligence, satisfies legal obligations, and protects organizations from financial losses linked to both fire damage and insurance disputes. In today’s regulatory and business environment, certification is not an option—it is a necessity for reliable fire safety and long-term risk management.

5. Applications and Best Uses of FM-200 Systems

Ideal for data centers, server rooms, electrical/telecom facilities, museums, and industrial sites

FM-200 fire suppression systems are particularly suited for environments where sensitive equipment, valuable assets, and business continuity are critical. One of the most common applications is in data centers and server rooms, where even a minor fire can cause massive downtime and data loss. FM-200 provides rapid protection without damaging IT hardware, ensuring uninterrupted digital operations.

The system is also ideal for electrical and telecommunication facilities, where complex networks and power systems must remain safe from both fire and the harmful effects of water-based extinguishers. Because FM-200 is electrically non-conductive, it can be discharged directly over live equipment without causing short circuits.

Beyond technical environments, FM-200 is widely used in museums, libraries, and archives to safeguard priceless artifacts, documents, and cultural treasures. Its clean agent leaves no residue, preserving delicate items that could otherwise be destroyed by traditional suppression methods.

In addition, many industrial sites and manufacturing units in Pakistan rely on FM-200 to protect control rooms, hazardous storage areas, and production floors where Class A, B, and C fire risks exist. Its speed of action and ability to adapt to various hazard levels make it one of the most reliable choices for industrial fire protection.

By serving data centers, telecom hubs, museums, and industrial facilities alike, FM-200 stands out as a versatile system capable of protecting diverse high-value environments.

Suitability for occupied vs. unoccupied spaces in Pakistan’s urban settings

In Pakistan’s rapidly growing urban centers, buildings often combine commercial, residential, and industrial spaces where fire safety must balance both human safety and asset protection. FM-200 fire suppression systems are well-suited to this environment because they are safe for occupied spaces when used within design concentrations. Offices, hospitals, shopping malls, and control rooms benefit from FM-200’s clean agent, which can be discharged without putting people at immediate risk, allowing time for safe evacuation.

For unoccupied spaces, such as data vaults, telecom exchanges, storage areas, or unmanned server facilities, FM-200 remains equally effective. Since there are no occupants to consider, the system can be designed at optimal concentrations for maximum suppression efficiency. This ensures that critical infrastructure is protected even when no staff are present.

Urban settings in Pakistan, especially in cities like Karachi, Lahore, and Islamabad, face higher fire risks due to dense infrastructure and heavy reliance on electronics. FM-200 offers flexibility by being equally suitable for spaces where people work daily and for sealed areas that require round-the-clock fire protection. This adaptability makes it one of the most practical solutions for modern city environments.

Advantages over water-based systems (no damage to electronics)

FM-200 fire suppression systems provide clear advantages over traditional water-based sprinklers, especially in environments where electronics and delicate assets are at risk. The biggest benefit is that FM-200 leaves no water or moisture, which means it does not damage servers, electrical panels, or communication equipment. This makes it the preferred choice for facilities like data centers, telecom hubs, and hospitals, where water could cause more harm than the fire itself.

Another advantage is the speed of action. While water sprinklers rely on heat buildup to trigger and then spread water across the area, FM-200 discharges in 10 seconds or less, immediately suppressing the fire before it can spread. This rapid response reduces both property damage and downtime.

Water-based systems also require significant cleanup and can destroy documents, furniture, and sensitive machinery. In contrast, FM-200 is a clean agent that leaves no residue, eliminating the need for post-fire cleanup and allowing operations to continue with minimal disruption.

By avoiding water-related damage while delivering faster suppression, FM-200 offers unmatched protection for modern facilities that rely on electronics and uninterrupted business processes.

Limitations (not for outdoor or large-scale fires)

While FM-200 fire suppression systems offer many advantages, it is important to understand their limitations so they can be applied correctly. One key limitation is that FM-200 is not suitable for outdoor environments. Since it is a gaseous agent, wind or open spaces can quickly disperse the gas, reducing its effectiveness in suppressing fire. For this reason, FM-200 is recommended only for enclosed areas where the clean agent can reach the required concentration.

Another limitation is that FM-200 is not designed for large-scale fires, such as those in open warehouses, factories with wide floor areas, or industrial plants with heavy fuel loads. In such cases, the amount of agent required would be impractical, and other suppression methods like sprinklers or foam systems are more effective.

Additionally, FM-200 systems must be carefully maintained to ensure proper pressure and concentration levels. If the cylinders lose pressure over time or the room is not sealed correctly, the system may not perform as intended.

Understanding these limitations helps facility managers choose FM-200 for the right applications—smaller to medium enclosed spaces with sensitive equipment—while considering alternative solutions for outdoor or large-scale fire risks.

6. Installation Guidelines for FM-200 Systems in Pakistan

Site assessment and design (room volume, hazard analysis per NFPA 2001)

Designing an effective FM-200 fire suppression system begins with a thorough site assessment, which ensures the system matches the unique requirements of the protected space. The first factor engineers consider is room volume, since the concentration of FM-200 gas depends on the size of the enclosure. Accurate measurement of length, width, and height is essential to calculate the exact quantity of agent needed for effective suppression.

A detailed hazard analysis is also carried out to identify the type of fire risks present. For example, a server room will primarily have Class C electrical hazards, while a storage area may contain Class A combustibles or Class B flammable liquids. Each hazard type influences how the system is designed and what concentration levels are applied.

All assessments and designs are carried out in line with NFPA 2001 standards, which provide strict guidelines for clean agent fire suppression systems. These standards ensure that the system discharges within 10 seconds, maintains safe concentrations for occupied spaces, and achieves reliable suppression of the identified hazards.

By combining accurate room volume calculations with a proper hazard analysis under NFPA 2001, FM-200 systems are customized to deliver maximum safety and performance in Pakistan’s commercial and industrial facilities.

Professional installation process (wiring, cylinder placement, integration with alarms)

Professional installation of an FM-200 fire suppression system is critical to ensure both safety and effectiveness. The process begins with cylinder placement, which must be strategically located to provide uniform coverage across the protected area. Cylinders are mounted securely and connected to a network of pipes that deliver the clean agent to every corner through precision-engineered nozzles.

Next, the wiring of the control panel and detectors is carefully installed. Smoke and heat detectors are linked to the panel, which continuously monitors the environment for early signs of fire. This setup ensures that the system can activate automatically if a hazard is detected.

Integration with existing alarm systems is also a key step. When the system is triggered, visual and audible alarms alert occupants, providing time for safe evacuation while the FM-200 agent is discharged. Manual release stations are also installed for human-initiated activation if needed.

Proper professional installation guarantees that all components—cylinders, piping, detectors, control panels, and alarms—work seamlessly together. This ensures rapid and reliable fire suppression while maintaining safety for people and sensitive equipment.

Local providers’ services (e.g., in Karachi, Lahore, Islamabad)

In Pakistan, several local providers specialize in FM-200 fire suppression systems, offering a complete range of services from installation to maintenance. Major cities like Karachi, Lahore, and Islamabad have certified suppliers who can assess your facility, design a system according to NFPA 2001 standards, and professionally install cylinders, nozzles, and control panels.

These providers also offer refilling and servicing of FM-200 cylinders, ensuring that systems remain fully operational over time. Regular inspections, leak testing, and system checks are part of their services, which help maintain the effectiveness of the clean agent in critical areas such as data centers, telecom facilities, hospitals, and industrial plants.

Many local companies provide both automatic and manual release system installation, along with integration into building alarm systems for full compliance with national and international standards. Choosing a reliable FM-200 service provider in Pakistan ensures fast response times, proper system maintenance, and adherence to safety regulations, giving businesses peace of mind that their fire protection measures are dependable.

Post-installation training for staff on system operation

After the FM-200 fire suppression system is installed, proper post-installation training is essential to ensure that staff can respond appropriately in case of a fire emergency. Training typically includes familiarization with manual release stations, understanding the functioning of the control panel, and recognizing the alarms associated with the system.

Employees are also instructed on evacuation procedures, emphasizing that the system may activate automatically while occupants exit safely. Staff learn how to identify system faults or warnings, and how to report them promptly to ensure ongoing reliability.

Additionally, training covers basic maintenance awareness, such as checking visual indicators on cylinders and ensuring that pathways to manual release stations remain unobstructed. In Pakistan, many FM-200 service providers in cities like Karachi, Lahore, and Islamabad include hands-on demonstrations as part of their installation package.

By providing thorough post-installation training, organizations ensure that their personnel are prepared to act quickly and safely, maximizing the effectiveness of the FM-200 system while protecting both lives and valuable assets.

7. Maintenance, Inspection, and Refilling Procedures

Routine checks (quarterly visual inspections, annual testing per NFPA 72)

Routine checks are critical to ensure that FM-200 fire suppression systems remain fully operational and reliable. Facilities in Pakistan should implement quarterly visual inspections to examine cylinders, piping, nozzles, and control panels for any signs of damage, corrosion, or leaks. These inspections help identify minor issues before they compromise the system’s effectiveness.

In addition to visual checks, annual testing is conducted according to NFPA 72 standards, which govern fire alarm and detection systems. Annual tests verify that detectors, alarms, and the control panel respond correctly, and that the discharge system can release the clean agent effectively. This process may include system pressure checks, detector sensitivity testing, and functional drills.

Following a structured routine check schedule ensures that FM-200 systems perform as designed, maintaining both asset protection and occupant safety. Regular inspections and testing also satisfy insurance requirements and support compliance with local regulations in Pakistan, giving organizations confidence in their fire protection measures.

Refilling guidelines (shelf life ~20 years, professional recharge needed)

FM-200 fire suppression systems require proper refilling to maintain efficiency and safety over time. The HFC-227ea agent in FM-200 cylinders has a shelf life of approximately 20 years, but periodic checks are necessary to ensure the cylinders remain pressurized and free from leaks.

Refilling or recharging FM-200 must be carried out by trained professionals to guarantee correct pressure, concentration, and compliance with NFPA 2001 standards. Unauthorized refills can compromise the system, reduce suppression effectiveness, and pose safety risks in occupied spaces.

Professional service providers in Pakistan offer cylinder inspection, leak testing, and certified refilling. They also maintain records of refill dates and system performance, which is important for regulatory compliance and insurance verification. Following these guidelines ensures that FM-200 systems continue to protect data centers, industrial facilities, hospitals, and other critical areas effectively throughout their lifespan.

Storage recommendations (high-pressure cylinders, dry environments)

Proper storage of FM-200 cylinders is essential to ensure their longevity and operational safety. Since FM-200 cylinders are high-pressure vessels, they should be stored in well-ventilated, dry environments away from direct sunlight or sources of heat. Extreme temperatures or humidity can affect cylinder integrity and pressure, potentially compromising the system during discharge.

Cylinders should be kept upright and securely fastened to prevent tipping or accidental damage. Storage areas should also be free from corrosive chemicals, sharp objects, and other hazards that could puncture or weaken the vessel. Maintaining a clean and organized storage space ensures quick access during inspections, refilling, or emergency deployment.

Adhering to these storage guidelines helps extend the service life of FM-200 cylinders, preserves the integrity of the clean agent, and supports reliable system performance in Pakistan’s commercial, industrial, and high-value facilities.

Cost of maintenance packages and common issues to watch for

Maintaining an FM-200 fire suppression system in Pakistan involves regular inspections, testing, and occasional refilling. Many certified service providers offer maintenance packages that typically include quarterly visual inspections, annual functional tests per NFPA 72, leak detection, and cylinder recharge. Prices vary depending on facility size, system complexity, and city, with packages in major urban centers like Karachi, Lahore, and Islamabad generally ranging from moderate to premium levels.

Common issues to watch for include loss of cylinder pressure, damaged or obstructed nozzles, sensor malfunctions, or corroded piping. Ignoring these problems can compromise the system’s rapid response during a fire event. Routine maintenance also ensures alarms, control panels, and manual release stations remain fully operational.

By investing in professional maintenance packages and monitoring these common issues, organizations can maximize the lifespan and reliability of their FM-200 systems, ensuring continuous protection of high-value assets and compliance with safety regulations in Pakistan.

8. Top Brands, Suppliers, and Prices in Pakistan

Leading brands (DuPont FM-200, Ansul, Chemours)

Several internationally recognized brands supply FM-200 fire suppression systems in Pakistan, ensuring high quality, reliability, and compliance with global standards. DuPont FM-200 is one of the most widely known, offering systems that meet NFPA 2001, UL Listed, and FM Approved standards. These systems are favored for data centers, hospitals, and industrial facilities due to their proven performance and safety features.

Ansul is another leading brand, renowned for its robust fire suppression solutions and comprehensive service support. Ansul FM-200 systems are designed for rapid discharge, leaving no residue, and are suitable for occupied spaces, making them popular in offices, telecom hubs, and laboratories.

Chemours, formerly part of DuPont, also provides FM-200 systems with a strong emphasis on environmental compliance and ozone-friendly formulations. Their solutions are widely adopted in Pakistan for critical infrastructure where both environmental and operational safety are priorities.

Choosing a trusted brand ensures access to certified equipment, professional installation services, and ongoing maintenance support. It also provides assurance that the FM-200 system will perform reliably in emergencies, safeguarding valuable assets and meeting regulatory requirements in Pakistan.

Key suppliers (Adams Fire Tech, Karachi Fire Corporation, Universal Fire Protection, Fire Safety Trading, Abdullah Fire Protection)

Pakistan has several reliable suppliers of FM-200 fire suppression systems, offering installation, maintenance, and refilling services across major cities. Adams Fire Tech is known for its certified solutions and wide range of system options suitable for data centers, industrial plants, and commercial facilities.

Karachi Fire Corporation provides professional installation and maintenance services, focusing on rapid discharge systems and compliance with NFPA 2001 standards. Universal Fire Protection caters to both small and large-scale installations, offering customized FM-200 designs for offices, telecom hubs, and hospitals.

Fire Safety Trading specializes in supplying cylinders, nozzles, and control panels while also providing training and post-installation support. Abdullah Fire Protection offers comprehensive FM-200 services, including site surveys, system design, and regular maintenance packages to ensure operational reliability.

Partnering with these trusted suppliers ensures that FM-200 systems in Pakistan are installed professionally, maintained regularly, and compliant with local and international safety standards. This guarantees that businesses, hospitals, and industrial facilities receive continuous and effective fire protection.

Price range (starts from Rs. 100,000 to Rs. 1,000,000+ based on size/project)

The cost of FM-200 fire suppression systems in Pakistan varies depending on the size of the facility, system design, and complexity of the installation. Entry-level systems for small server rooms or equipment cabinets generally start from around Rs. 100,000, including cylinders, nozzles, and basic control panels.

For larger installations, such as data centers, industrial plants, hospitals, or multi-room commercial facilities, costs can exceed Rs. 1,000,000. These projects often require multiple high-pressure cylinders, extensive piping networks, advanced detection systems, and integration with building alarms and safety protocols.

Additional factors influencing the price include professional installation fees, post-installation training, certification compliance (NFPA 2001, UL, FM Approved), and ongoing maintenance packages. Businesses in Pakistan are advised to consult certified FM-200 suppliers to receive a detailed quote tailored to their specific facility requirements.

Investing in a properly designed and installed FM-200 system ensures rapid fire suppression, protection of high-value assets, and compliance with safety regulations, making it a worthwhile expenditure for critical environments.

Where to buy (online/offline in major cities, factors affecting cost)

FM-200 fire suppression systems are available through both online and offline suppliers in Pakistan. Major cities like Karachi, Lahore, and Islamabad have certified distributors who provide full services, including site surveys, system design, professional installation, and post-installation maintenance. Offline visits allow businesses to inspect cylinders, nozzles, and control panels, while online inquiries can help compare prices and service packages from multiple providers.

Several factors affect the cost of FM-200 systems. These include the size of the protected area, the number of cylinders required, complexity of piping and nozzle layout, type of control panel, and whether the system is pre-engineered or fully engineered. Additional costs may arise from professional installation, post-installation training, and annual maintenance packages.

Choosing a reputable supplier is crucial to ensure that the FM-200 system complies with NFPA 2001, UL, and FM Approved standards. Verified providers also offer refilling services and routine maintenance, ensuring long-term reliability and protection of valuable assets. By considering both service quality and cost factors, businesses can select an FM-200 solution that is safe, effective, and tailored to their specific needs in Pakistan.

9. Fire Safety Regulations for FM-200 Systems in Pakistan

Overview of Building Code of Pakistan (BCP) 2021 and provincial fire safety rules

The Building Code of Pakistan (BCP) 2021 provides comprehensive guidelines for fire safety, construction standards, and emergency preparedness in both commercial and residential buildings. It mandates that critical facilities such as high-rise buildings, hospitals, data centers, and industrial sites implement advanced fire suppression measures, including clean agent systems like FM-200, to protect lives and high-value assets.

In addition to the national code, provincial fire safety rules in Sindh, Punjab, Khyber Pakhtunkhwa, and Islamabad Capital Territory specify local requirements for system design, installation, and maintenance. These rules often reference international standards such as NFPA, UL, and FM Approved, ensuring that installed systems meet global safety benchmarks while addressing region-specific fire risks.

Compliance with BCP 2021 and provincial regulations is essential for obtaining building permits, passing inspections, and qualifying for insurance coverage. It also ensures that FM-200 systems are properly designed for factors like room volume, occupancy, and hazard type, providing reliable fire protection across Pakistan’s diverse building types.

Mandatory compliance for commercial/industrial buildings

In Pakistan, compliance with fire safety regulations is mandatory for commercial and industrial buildings to safeguard lives, protect high-value assets, and reduce potential business losses. The Building Code of Pakistan (BCP) 2021 requires that these facilities implement appropriate fire suppression systems, including clean agent options like FM-200, based on hazard assessment and occupancy type.

Provincial fire safety rules in Sindh, Punjab, Khyber Pakhtunkhwa, and Islamabad Capital Territory enforce these requirements locally. Inspections and permits are tied to adherence with NFPA, UL, and FM Approved standards, ensuring that installed systems meet international safety benchmarks. Failure to comply can result in fines, legal liabilities, insurance issues, or operational restrictions.

Mandatory compliance ensures that commercial offices, data centers, hospitals, industrial plants, and high-rise complexes have properly designed, installed, and maintained fire suppression systems. It guarantees both the protection of people and continuity of operations in the event of a fire emergency.

Integration with overall fire plans (alarms, evacuation protocols)

Effective fire protection in Pakistan requires that FM-200 systems be fully integrated with the building’s overall fire safety plan. This includes seamless coordination with fire alarms, emergency evacuation protocols, and other suppression or detection systems. When a fire is detected, the FM-200 system works in tandem with alarms to alert occupants, giving them sufficient time to evacuate safely while the clean agent rapidly suppresses the fire.

Integration also ensures that FM-200 does not operate in isolation. For example, smoke or heat detectors linked to the control panel trigger both the discharge of the agent and simultaneous notifications to building security or fire response teams. Evacuation routes and protocols are planned to align with system activation, preventing bottlenecks and ensuring orderly exit.

In commercial, industrial, and high-rise buildings, combining FM-200 with audible/visual alarms and emergency response procedures maximizes the effectiveness of fire suppression while protecting human life and valuable assets. Proper integration is a key requirement under the Building Code of Pakistan 2021 and provincial fire safety regulations, ensuring compliance and operational safety across facilities.

Environmental regulations (low GWP, phase-out considerations)

FM-200 fire suppression systems in Pakistan are subject to environmental considerations, particularly regarding their Global Warming Potential (GWP). While HFC-227ea is ozone-friendly, its GWP is higher than some newer alternatives like Novec 1230. Businesses are encouraged to select FM-200 systems designed with the lowest possible GWP to comply with both local environmental policies and international sustainability guidelines.

Regulatory authorities and corporate sustainability programs may consider phase-out timelines for high-GWP agents in the future. Facilities that proactively adopt environmentally responsible FM-200 systems ensure long-term compliance and reduce the risk of needing costly retrofits or replacements.

In practice, this means working with certified suppliers who provide detailed documentation on GWP values, environmental certifications, and safe handling procedures. By adhering to these environmental regulations, organizations in Pakistan can balance effective fire protection with eco-conscious operations, supporting global efforts to mitigate climate impact.

10. FAQs: Common Questions About FM-200 Fire Suppression

What is the difference between FM-200 and CO2 systems?

FM-200 and CO2 are both widely used fire suppression agents, but they differ significantly in safety, application, and environmental impact.

Safety for Occupants: FM-200 is safe for occupied spaces when used within design concentrations. It allows people to remain in the room during discharge or evacuate safely. CO2, on the other hand, displaces oxygen, making it hazardous or even fatal for humans, so it is only suitable for unoccupied areas.

Application Areas: FM-200 is ideal for sensitive environments like data centers, hospitals, telecom facilities, and archives because it leaves no residue and is electrically non-conductive. CO2 is better suited for industrial areas or large unoccupied rooms where water-based suppression or clean agents cannot be effectively used.

Environmental Impact: FM-200 (HFC-227ea) is ozone-friendly, though it has a higher Global Warming Potential (GWP) than some newer agents. CO2 is a natural gas with zero ozone depletion potential, but its discharge requires high volumes and can contribute indirectly to greenhouse gas emissions.

Discharge Mechanism: FM-200 rapidly suppresses fire through heat absorption and free radical interruption, typically discharging in under 10 seconds. CO2 extinguishes fire mainly by displacing oxygen and cooling, which can require larger storage volumes and higher pressure.

In summary, FM-200 is preferred for occupied, sensitive, or high-value areas, while CO2 is mostly used for unoccupied industrial or hazardous spaces. The choice depends on safety requirements, environment sensitivity, and regulatory considerations.

Is FM-200 safe for human-occupied areas?

Yes, FM-200 fire suppression systems are considered safe for human-occupied areas when installed and operated according to design specifications. The clean agent HFC-227ea is non-toxic within recommended concentrations, allowing people to remain in the room briefly or evacuate safely during a fire event.

FM-200 is also electrically non-conductive and non-corrosive, making it ideal for offices, data centers, hospitals, control rooms, and other occupied spaces with sensitive equipment. Unlike CO2 systems, which displace oxygen and pose serious risks to humans, FM-200 suppresses fire rapidly without endangering life.

It is important, however, that the system is designed and maintained according to NFPA 2001 standards and manufacturer guidelines. Proper installation, concentration calculations, and routine inspections ensure that FM-200 provides both effective fire suppression and occupant safety in Pakistan’s commercial, industrial, and institutional settings.

How much does FM-200 cost per kg in Pakistan?

The cost of FM-200 (HFC-227ea) fire suppression agent in Pakistan varies based on factors such as supplier, quantity, and market conditions. While specific per-kilogram prices are not publicly listed, some suppliers provide pricing for complete systems that include the FM-200 agent, cylinders, detection and control panels, and installation.

For instance, Adams Fire Tech offers an FM-200 fire suppression system priced at ₨ 525,000. This price likely includes the agent along with other necessary components and services. adamsfiretech.com

To obtain an accurate per-kilogram cost for FM-200 in Pakistan, it’s advisable to contact suppliers directly for quotes based on your specific requirements. Suppliers such as Karachi Fire, Universal Fire Protection, and Fire Safety Trading can provide detailed pricing information and assist with system design and installation.

If you need assistance reaching out to these suppliers or require further information on FM-200 systems, feel free to ask.

Can FM-200 be used in residential settings?

Yes, FM-200 fire suppression systems can be used in residential settings, but their application is typically limited to high-value or sensitive areas within the home, such as server rooms, home theaters, or private data centers. The clean agent HFC-227ea is safe for occupied spaces, leaving no residue and protecting both people and property without causing water damage.

However, FM-200 systems are usually more expensive than traditional residential fire solutions like smoke detectors and sprinklers, and they require professional installation, proper room sealing, and routine maintenance to ensure effectiveness. For smaller rooms or single-use spaces, pre-engineered FM-200 systems are often recommended because they provide rapid fire suppression without the complexity of a fully engineered setup.

In residential use, FM-200 offers the advantage of protecting sensitive electronics, valuable documents, and furnishings from fire while minimizing cleanup and damage, making it a practical choice for luxury homes or private offices with critical equipment.

What is the discharge time of an FM-200 system?

The FM-200 fire suppression system is designed for rapid discharge, typically releasing the clean agent within 10 seconds or less after activation. This quick action ensures that fires are suppressed almost instantly, minimizing damage to sensitive equipment, documents, and infrastructure.

The rapid discharge is achieved using pressurized cylinders filled with HFC-227ea and nitrogen, which force the agent through nozzles evenly throughout the protected area. The system is engineered to fill the entire room to the required concentration almost immediately, effectively disrupting the fire triangle by absorbing heat and interrupting free radicals.

This fast discharge capability makes FM-200 ideal for data centers, server rooms, hospitals, telecom facilities, and other high-value environments in Pakistan where even a few seconds of fire exposure could result in significant losses. Proper system design and maintenance are critical to ensure that the discharge time meets these specifications reliably.

11. Conclusion: Invest in FM-200 for Ultimate Fire Safety

Recap of key benefits and why it’s a smart choice for Pakistan businesses

FM-200 fire suppression systems offer multiple benefits that make them a smart choice for businesses in Pakistan. One of the most important advantages is rapid fire suppression, with the agent discharging in 10 seconds or less to prevent fire spread and minimize damage.

The system is safe for occupied spaces, using a non-toxic, electrically non-conductive clean agent that protects both people and sensitive equipment, including servers, medical devices, and telecommunications infrastructure. Its no-residue, ozone-friendly formula ensures that valuable assets remain unharmed, avoiding costly cleanup after a fire incident.

FM-200 systems are versatile and customizable, suitable for Class A, B, and C hazards, and adaptable to different facility sizes and layouts. Integration with alarms, manual release stations, and evacuation protocols ensures coordinated safety across the building.

For Pakistan businesses, the combination of asset protection, human safety, regulatory compliance, and environmental responsibility makes FM-200 a reliable and forward-thinking fire suppression solution. Whether for data centers, hospitals, industrial plants, or high-rise offices, FM-200 helps safeguard lives and critical operations against fire risks.

Call to action (consult certified providers, schedule assessments)

Businesses and organizations in Pakistan are encouraged to consult certified FM-200 providers to assess their fire protection needs. Professional providers can perform a thorough site survey, design a system tailored to the facility’s size, occupancy, and hazard type, and ensure installation meets NFPA 2001, UL, and FM Approved standards.

Scheduling a fire safety assessment is the first step toward protecting high-value assets, sensitive equipment, and human life. Providers in cities like Karachi, Lahore, and Islamabad offer complete solutions, including installation, routine maintenance, refilling, and staff training.

Acting proactively with a certified FM-200 system ensures rapid fire suppression, compliance with local and international regulations, and long-term reliability. Contact a trusted supplier today to secure your facility against fire risks and maintain business continuity in Pakistan.

Resources for further info (NFPA guidelines, local fire authorities)

For businesses seeking more information on FM-200 fire suppression systems in Pakistan, several resources provide detailed guidance and regulatory standards. The National Fire Protection Association (NFPA) publishes comprehensive guidelines, including NFPA 2001, which covers clean agent fire extinguishing systems and provides recommendations for design, installation, and maintenance.

Local fire authorities and municipal fire departments in cities like Karachi, Lahore, and Islamabad can provide information on provincial fire safety rules, inspection requirements, and compliance obligations under the Building Code of Pakistan 2021.

Additionally, certified FM-200 providers often supply technical documentation, product datasheets, and training materials to help businesses understand system operation, maintenance, and environmental considerations. Utilizing these resources ensures that organizations implement safe, effective, and compliant fire suppression solutions tailored to their facility’s needs.

FM-200 fire suppression systems provide Pakistan businesses with a reliable, rapid, and safe solution for protecting high-value assets, sensitive equipment, and human life. With advantages such as quick discharge, no-residue operation, safety in occupied spaces, and compliance with international standards like NFPA 2001, FM-200 is ideal for data centers, hospitals, industrial facilities, and commercial buildings.

By choosing certified providers, scheduling proper assessments, and following maintenance and refilling guidelines, organizations can ensure long-term system reliability and regulatory compliance. For businesses seeking robust fire protection in Pakistan, FM-200 offers a smart, forward-thinking choice that balances safety, efficiency, and environmental responsibility.
