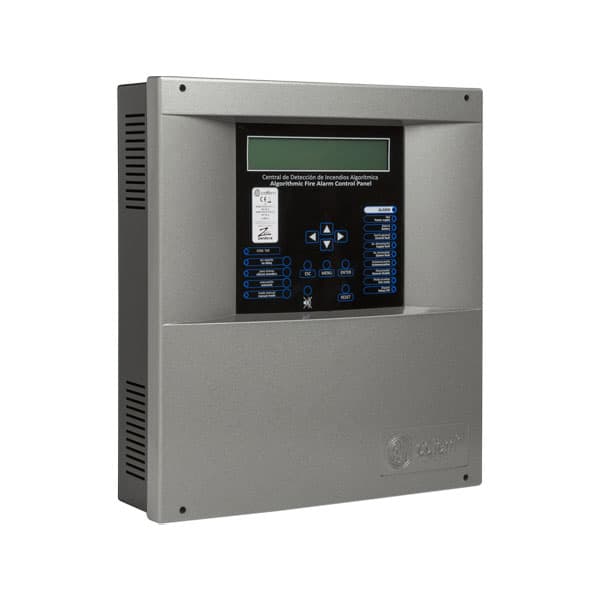

COMPACT LYON CONTROL PANEL

Image module

DESCRIPTION

  • The algorithmic addressable Control Panel Compact Lyon is EN 54-2 and EN 54-4 standard certified according to the latest CE Directives/Regulation.
  • The Compact Lyon panel does the same functions that Lyon Control Panel, being fully compatible with it from the point of view of installation (cabling, analogue detectors, manual call points, modules and analogue sounders, etc.).
  • It is particularly interesting in medium-size installations, traditionally designed for conventional systems, allowing using an addressable system with all its functionality and advantage.
  • In case the installation should be extended, the Compact Lyon Control Panel has the control panels network function, whereby control panels can be connected together, also showing the information of the control panels connected to a repeater, besides allows an additional functionality of operation.

FEATURES

The Compact Lyon Control Panel offers peace of mind with its comprehensive fire safety features, such as:



  • Control panel configurable with 1 or 2 loops.
  • Loop capability 99 points.
  • All the points are supervised by the control panel, except the loop isolator KABY.
  • Capacity for 64 configurable relays per control panel.
  • Registry with capacity of 4095 events with date and time.
  • Can hold up to 99 zones per panel.
  • Alarm output as free voltage relay not supervised, identified as ALARM.
  • Allowed to connect addressable sounders in the loop.
  • Failure general output, as free voltage relay not supervised, identified as FAULT.
  • Delay of supervised sounder output programmable between 0 to 10 minutes, identified as S1.
  • Allowed to connect addressable sounders in the loop.
  • Evacuation push-button.
  • Incorporates multiple languages by default (Spanish, English, French, Portuguese, etc).
  • Backlit LCD display with 4 lines and 40 characters.
  • Access to the control panel keyboard introducing a numeric code.
  • Connectable to external keyboard (standard PC-PS2).
  • Configurable with the PC-EASY CoNET software.
  • Allows connection of up to 8 repeaters and/or 8 control panels in network.
  • Size: 363 x 331 x 96 mm.
  • Certified according to EN 54-2 and EN 54-4 and EN 54-4 and CE mark according to the European Regulation of Construction Products (UE) Nยฐ305/2011.

Fire Safety Trading Pvt Ltd:

Fire Safety Trading Pvt ltd, is the leading fire safety products provider to the users in Pakistan. We understand your security needs, hence provide every fire safety equipment. Don’t compromise on quality when it comes to fire safety. Choose the Compact Lyon Control Panel and experience the reliability and peace of mind that comes with having a top-of-the-line fire alarm control panel by your side. If you need to purchase a Compact Lyon Control Panel, at reasonable prices in Pakistan, contact us at your earliest. Mobile: 0315-4233313
